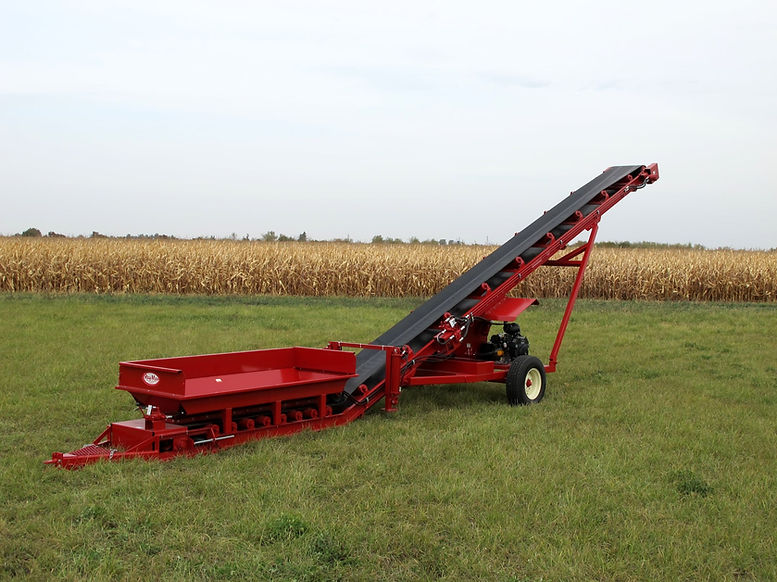

FLOATER LOADER LIME CONVEYORS
The floater loader conveyor can be used to unload most bulk materials. It has a rugged frame that does not fold, reducing dangerous pivot points. The conveyors hopper has a versatile design so that it can be filled using an end dump truck, live bottom trailer or loader. It also has a convenient hydraulic landing gear for easy hook up to your floater or pick-up truck. Floater loader conveyors are available in 24 ft or 30 ft models.
24 inch belt
30 inch belt
24-IN LOADER SPECIFICATIONS
Productivity
-
Unload up to 6 tons of ag lime per minute
-
10-in hopper extensions with reversible backsplash
-
Adjustable belt speed control
-
Control valves with pressure relief
-
6-ft long shovel/toolbox
Power
-
27-hp Kohler air cooled gas engine
Dimensions and weight
-
Intake hopper: 110-in long x 40-in deep x 28-in tall
-
Weight: 4,600 lb
Optional features
-
Two, 6-gal CARB low evaporative emission fuel tank kit
-
30-hp Deutz air-cooled diesel engine
-
Wireless remote control for throttle and belt
-
3-in pintle hitch
-
2-5/16-in ball coupler
-
Tail light package
Machine design
-
Heavy-duty tubular steel undercarriage
-
3,000 lb 6-bolt hubs
-
Direct mount single stage gear pump
-
35-degree trough rollers on conveyor incline
-
12-in drive pulley with rough top lagging
-
24-in wide 2-ply smooth top rubber belt
Hydraulics
-
Hydraulic jack with hitch mounted control valve
Safety and transportation
-
265/75R radial tires on steel disc wheels
Fuel and oil
-
Two, 6-gal CARB low evaporative emission fuel tank kit
-
30-gal oil reservoir with sight gauge
24-IN FLOATER LOADERS
30-IN LOADER SPECIFICATIONS
Productivity
-
Unload up to 12 tons of ag lime per minute
-
10-in hopper extensions with reversible backsplash
-
Adjustable belt speed control
-
Control valves with pressure relief
-
6-ft long shovel/toolbox
Power
-
41-hp Deutz air cooled diesel engine
-
Planetary gear final drive
-
Electronic two-speed throttle control
Dimensions and weight
-
Intake hopper: 120-in long x 46-in deep x 30-in tall
-
Weight: 6,800 lb
-
Wireless remote control for throttle and belt
-
Duro cleat belt
-
3-in pintle hitch
-
2-5/16-in ball coupler
-
Tail light package
Optional features
Machine design
-
Heavy-duty tubular steel undercarriage
-
6,000 lb 8-bolt hubs
-
Direct mount single stage gear pump
-
35-degree trough rollers on conveyor incline
-
16-in drive pulley with deep groove lagging
-
30-in wide 2-ply smooth top rubber belt
Hydraulics
-
Hydraulic jack with hitch mounted control valve
Transportation
-
11R22.5G radial tires on steel disc wheels
Fuel and oil
-
18 gal fuel tank
-
30-gal oil reservoir with sight gauge
30-IN FLOATER LOADERS
